Studio also a PCB manufacturing shop serving local and national manufacturing companies. The company built single layer board, double layers board and multi-layers boards. By 2008, had expanded its business to assembly, product design and final assembly. The establishment of our ShenZheng plant makes us to capable to be an integrated electronic manufacturing service provider. Today, Studio offers customers an unparalleled range of PCB manufacturing and assembly capabilities.

Capabilities	Standard
Board types	Multilayer up to 50 layers
Material	FR4, FR5, FR406, FR408, High-TG(TG>170 ℃), CEM-1, Aluminum and Copper base, Teflon
Minimum Trace width	0.08mm
Minimum Track Width to feature spacing	0.075mm
Smallest drilled hole	0.08mm
Material Thickness	0.1mm-6.0mm
Copper Thickness	Up to 6 oz Cu
Max board size	500 mm x 700mm
Tolerance of dimension	±0.08mm
Tolerance of thickness (t ≥0.8mm)	±8%
Tolerance of thickness (t ≤0.8mm)	±10%
Solder Mask	SMOBC, LPI or Dry Film
Surface finish	Hot Air Solder Level(HASL) Electroless Nickel / Immersion Silver, ENIG Electroless Tin Lead / Organic ( OSP ) Hard Gold ( edge contact ) / Carbon
Silkscreen Colors	White, Yellow, Black
Solder Mask Colors	Green, Blue, Red, Black, Clear
Bare Board Test	Bed of Nails Simultaneous double-sided flying probe test
Gold plate	Edge connectors Touch Pads
Panelization	Routing, V-Groove

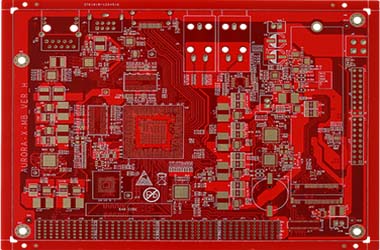

High Freqyency PCB

This article talks about Choosing a High Frequency PCB Design Manufacturer, including Plan your floorplan, Route signals to maximize shielding, Avoid coupling between power and ground planes, FR4 doesn't work at high frequencies, PTFE can smear at drill if it gets too hot, Knowledge of FR4 can still act as a suitable laminate material. It is instructive for pcb assembly customization.

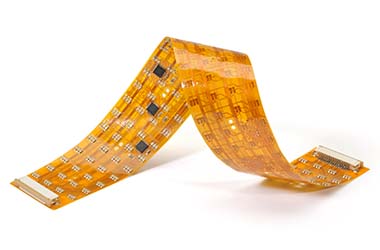

Flex pcb

The article talks about Heavy Copper Materials and Single Layer Rigid Flex PCB Design Manufacturers. Polyimide is a plastic-based substance with great thermal resistance and durability. It is produced from different compounds that contain imide architectures. Polyimides are used to produce various. types of PCBs The most common polyimide PCBs are sheer polyimides. Rigid PCBs have multiple layers of copper traces, while polyimide PCBs have a single layer of copper. These types of PCBs are ideal for complex PCB applications. They can be bent and folded without breaking. They are highly tensile, providing high resistance to mechanical stress . The materials and process characteristics of FR-1, FR-2, FR-5, FR-6, FR-7, FR-8, FR-9 are described in detail

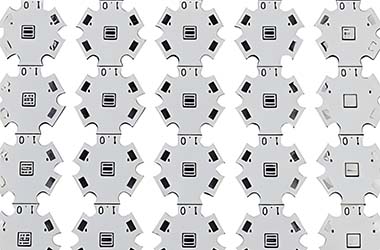

Aluminum pcb

This article explains how to Finding an Aluminum Base PCB Circuit Board Manufacturer. Including Metal core, high thermal conductivity, Multi-layering, solder mask printing, etc.

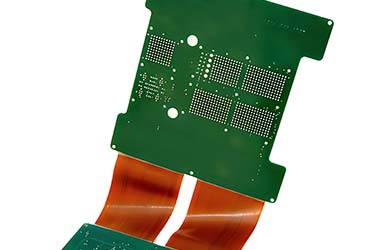

Riqid flex pcb

What problems should be paid attention to in Rigid-flex boards? What are the characteristics of Rigid-flex PCB design? As one of the largest Rigid-flex PCB manufacturers in China, PCBasic will answer your questions

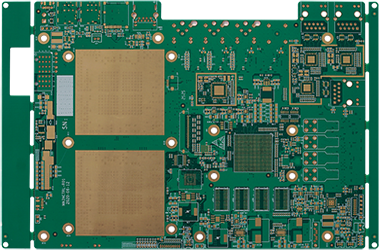

Multilayer pcb up to 50 layer

The internal plane layer, also known as the internal power layer, is dedicated to the layout of power lines and ground lines. This type of layer is only used for multilayer PCB board. We call it double-layer.

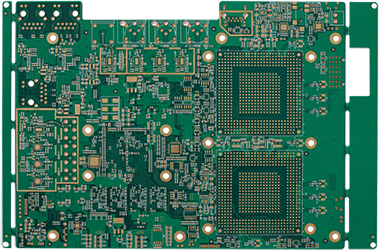

Thick copper pcb

Heavy copper PCB manufacturers with high service awareness, design heavy copper PCB and heavy copper flex PCB according to your needs, so that the products can carry high-power devices on demand

Carbon ink pcb

Carbon Ink PCB is an Eco Friendly PCB, which conforms to PCB environmentalism and has good conductivity. It is often used in high voltage, pulse, and high frequency circuits

RF pcb

RF PCBs or radio frequency printed circuit boards are among the fastest-growing areas in PCB manufacturing. They function with high-frequency signals, especially those in the RF (radio frequency) range.
